  3. Braided Vectran® 125 - Spools
By Twinline, LLC

Braided Vectran® 125 - Spools

$32.41 - $121.66
Title: 250 ft. spool
$32.41
$32.41
Availability: Low stock: 4 left
SKU: Bvec060-spl(250)
Collections:
$32.41
$32.41

Available Lengths: 250 ft.

Characteristics:

Vectran®T150 HT is a high-performance multi filament yarn spun from liquid crystal polymer (LCP). It has high strength with no measurable creep over time. Vectran® has superior abrasion resistance, excellent moisture resistance, and exceptional property retention over broad ranges of temperature and chemical environments.

Current applications include:

  • Aerospace
  • Robotics

Product specifications:

Core Material Vectran®T150 HT
Coating Untreated
Denier  3,402.18
Yield per LB (3936 ft) - (1200 m)
Tensile Strength  164 lbs / 69kgs / 68 Dekanewtons**
Elongation @ 75% of break strength
 2.00%

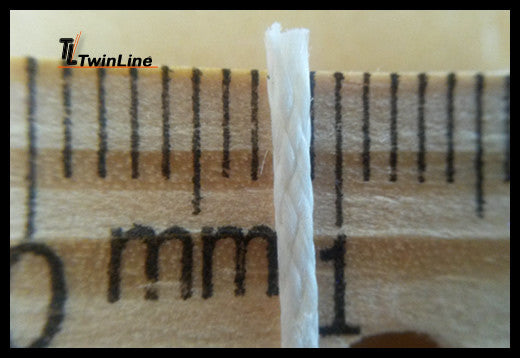

Diameter (0.028 in) - (0.73 mm)
Production Color Natural
Item Number Bvec060-spl(xxxx) x-length
